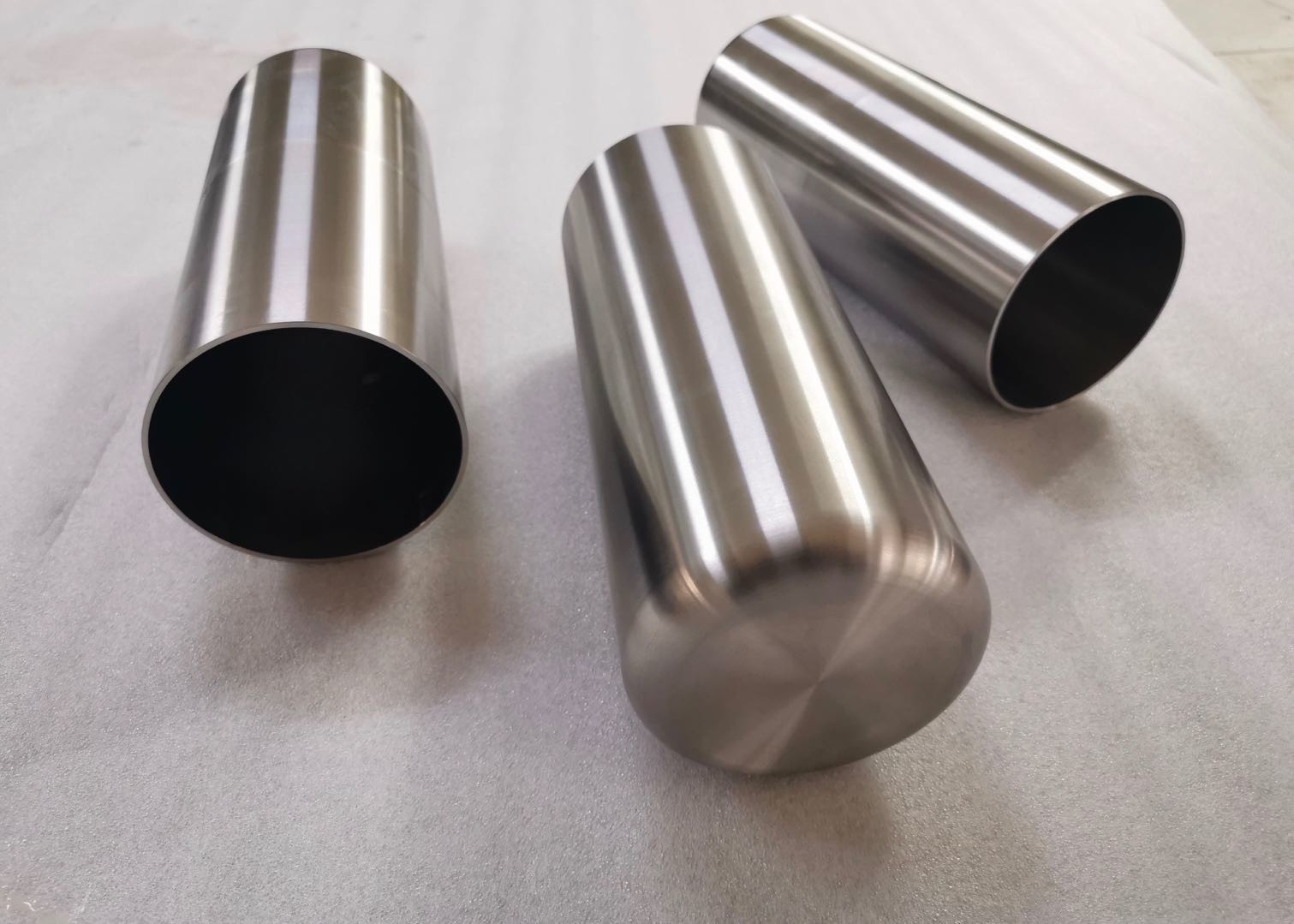

ISO9001 Precision Machining Parts Ultra High Vacuum Cavity Joint

Place of Origin CHINA
Brand Name DM
Certification ISO9001
Model Number MO70
Minimum Order Quantity 1 piece
Price 50USD
Packaging Details seaworth plywood cases
Delivery Time 20days
Supply Ability 100 piece per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Material Stainless Steel 304 Process Forging And CNC Machining
Precision +0.01mm Type MO70
Production Equipment HAAS SL30
High Light

ISO9001 precision machining parts


ss304 0.01mm precision machining parts


ss304 Vacuum Cavity Joint

Leave a Message
Product Description

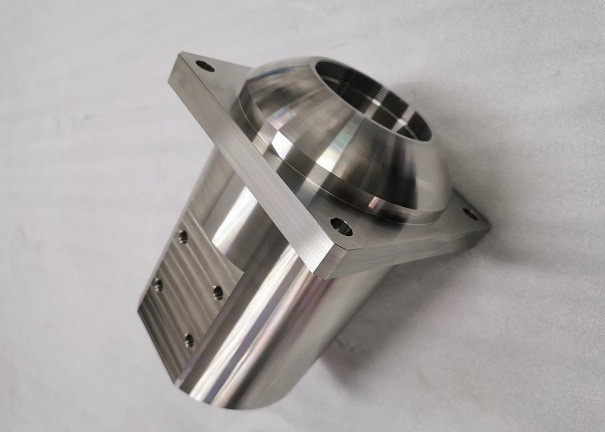

stainless steel Ultra high vacuum cavity joint



 Drachma Material's  have been in the vacuum industry for many years.We are involved in a number of areas like  vacuum coating machine,  the new energy photovoltaic vacuum parts, and then to the semiconductor equipment parts, we continue to enrich their own product line and process level


———Brief Introduction


Square Six-way Cross Flange is a type of connection used in ultra-high vacuum environments, which is a metal static seal and can withstand high-temperature baking. Specifications include DN16 DN40 DN63 DN100 DN160 DN200. The general manufacturing standard is ISO3669, applicable vacuum degree up to 10-12  mbar



MO70 DN70 75*49*105 304,316


——— Equipment show


We have three-coordinate measuring laboratory, can carry out all kinds of precision testing, to ensure product quality

We have high precision CNC to ensure the quality and precision of products


ISO9001 Precision Machining Parts Ultra High Vacuum Cavity Joint 0                                  ISO9001 Precision Machining Parts Ultra High Vacuum Cavity Joint 1




———Equipment list


Name Type Quantity Processing range Precision(um)
CNC MAZAK(QTN350L) 1 φ720*1250 3
CNC MAZAK(QTN250L) 1 φ580*1500 3
Turn milling center MAZAK(QTN250M) 2 φ580*600 3
CNC Newway(NL-634SC) 1 φ630*1000 5
CNC FUJI(TN-36) 2 φ350*290 3
CNC HAAS SL30 1 φ620*750 3
CNC MAZAK FJV200 1 560X*410Y*560Z 3
CNC LGMAZAK NEXUS160AN-2PC 1 560X*410Y*660Z 10
CNC WHEELEL 2 560X*410Y*660Z 5
Welding Miller 1



———Material list we can deal


 Stainless steel :304/1.4307   316/1.4404  321/1.4541  316Ti/1.4571  317L 904L  F44  NO6625  UNS718

                                       440A/B/C     431    446     F6a    F11   F22   F91


 Duplex steel :             F51   F60   F53    F55


 Aluminum :              6061   6063    7075   5052


———Our career


Our company has two main production plants. Zhangjiagang factory is responsible for the rough forming of workpiece, mainly forging process; Hangzhou plant is mainly responsible for precision machining, welding and inspection of products. We implement this layout mainly to use the industrial advantages of each region to achieve maximum economic benefits.


Traditional processing enterprises often do not have such ability, the lack of blank forming ability is unable to achieve the optimal use of materials, resulting in excessive processing allowance, long cycle, high cost. Zhangjiagang is located in the southern jiangsu province, which has the strongest forging capacity in China. It has a good supporting industry and can realize the diversified production of forging and pressing blanks. Thanks to this, the product cycle of our company is faster, the cost performance is higher, and the forging products have better mechanical properties than the products directly processed by rod or plate.


In addition, our company has strong welding ability, which can weld and assemble parts to achieve system delivery. Our company adopts the mode of automatic robot welding and manual precision welding to achieve flexibility and high quality



                                              Two advantages forging and welding



                     ISO9001 Precision Machining Parts Ultra High Vacuum Cavity Joint 2
