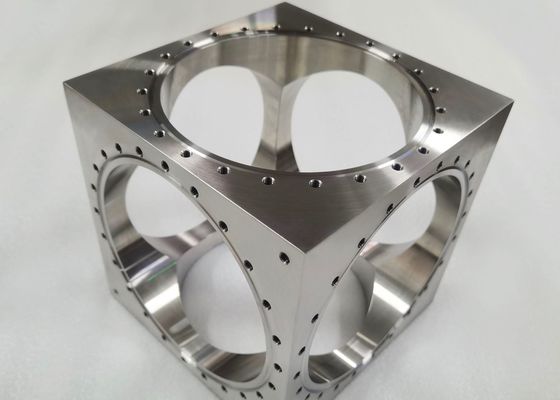

SS304 CNC Precision Machined Components CF50 6 Way Cross Vacuum Square
| Place of Origin | CHINA |
|---|---|
| Brand Name | DM |
| Certification | ISO9001 |
| Model Number | CF50 |
| Minimum Order Quantity | 1 piece |
| Price | 500USD |
| Packaging Details | seaworth plywood cases |
| Delivery Time | 20days |
| Supply Ability | 100 piece per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Stainless Steel 304 | Process | Forging And CNC Machining |
|---|---|---|---|
| Precision | +0.01mm | Type | CF50 Axial Type |
| Production Equipment | HAAS SL30 | ||
| High Light | SS304 CNC Precision Machined Components,CF50 0.01mm CNC Precision Machined Components,CF50 6 way cross |
||
Product Description
stainless steel CF200 Ultra high vacuum square six-way cross
Ultra-high vacuum components are always Drachma Material's main products.We have been in the vacuum industry for many years. From the early parts of the vacuum coating machine, to the new energy photovoltaic vacuum parts, and then to the semiconductor equipment parts, we continue to enrich their own product line and process level
———Brief Introduction
Square Six-way Cross Flange is a type of connection used in ultra-high vacuum environments, which is a metal static seal and can withstand high-temperature baking. Specifications include DN16 DN40 DN63 DN100 DN160 DN200. The general manufacturing standard is ISO3669, applicable vacuum degree up to 10-12 mbar
| TYPE | SPECIFICATION | SIZE | MATERIAL |
| CF16 | DN16 | 34*34*34 | 304,316 |
| CF25 | DN25 | 54*54*54 | 304,316 |
| CF35 | DN35 | 70*70*70 | 304,316 |
| CF50 | DN50 | 86*86*86 | 304,316 |
——— Equipment show
We have three-coordinate measuring laboratory, can carry out all kinds of precision testing, to ensure product quality
We have high precision CNC to ensure the quality and precision of products
———Equipment list
| Name | Type | Quantity | Processing range | Precision(um) |
| CNC | MAZAK(QTN350L) | 1 | φ720*1250 | 3 |
| CNC | MAZAK(QTN250L) | 1 | φ580*1500 | 3 |
| Turn milling center | MAZAK(QTN250M) | 2 | φ580*600 | 3 |
| CNC | Newway(NL-634SC) | 1 | φ630*1000 | 5 |
| CNC | FUJI(TN-36) | 2 | φ350*290 | 3 |
| CNC | HAAS SL30 | 1 | φ620*750 | 3 |
| CNC | MAZAK FJV200 | 1 | 560X*410Y*560Z | 3 |
| CNC | LGMAZAK NEXUS160AN-2PC | 1 | 560X*410Y*660Z | 10 |
| CNC | WHEELEL | 2 | 560X*410Y*660Z | 5 |
| Welding | Miller | 1 |
———Material list we can deal
Stainless steel :304/1.4307 316/1.4404 321/1.4541 316Ti/1.4571 317L 904L F44 NO6625 UNS718
440A/B/C 431 446 F6a F11 F22 F91
Duplex steel : F51 F60 F53 F55
Aluminum : 6061 6063 7075 5052
———Our career
Our company has two main production plants. Zhangjiagang factory is responsible for the rough forming of workpiece, mainly forging process; Hangzhou plant is mainly responsible for precision machining, welding and inspection of products. We implement this layout mainly to use the industrial advantages of each region to achieve maximum economic benefits.
Traditional processing enterprises often do not have such ability, the lack of blank forming ability is unable to achieve the optimal use of materials, resulting in excessive processing allowance, long cycle, high cost. Zhangjiagang is located in the southern jiangsu province, which has the strongest forging capacity in China. It has a good supporting industry and can realize the diversified production of forging and pressing blanks. Thanks to this, the product cycle of our company is faster, the cost performance is higher, and the forging products have better mechanical properties than the products directly processed by rod or plate.
In addition, our company has strong welding ability, which can weld and assemble parts to achieve system delivery. Our company adopts the mode of automatic robot welding and manual precision welding to achieve flexibility and high quality
Two advantages forging and welding
