Petroleum Figure 8 Spectacle Blind DIN2576 Figure 8 Blind Flange

Place of Origin CHINA
Brand Name DM
Certification TUV ISO
Model Number ASME B16.5 spectacle blind 600# RF 8"
Minimum Order Quantity 1piece
Price 70-1000USD
Packaging Details Seaworth plywood case
Supply Ability 100Ton per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Alloy Steel, Aluminum, Stainless Steel, Carbon Steel Surface FF/RF/RJ
Standard JIS B2220 EN1092-1 DIN2576 ASME B16.5 Process Forging And Machining
Application Petroleum,Water,Steam,Air,etc. Pressure PN10-100 150#-2500#
High Light

Petroleum Figure 8 Spectacle Blind

,

Figure 8 Spectacle Blind DIN2576

,

DIN2576 Figure 8 Blind Flange

Leave a Message
Product Description
Product Description

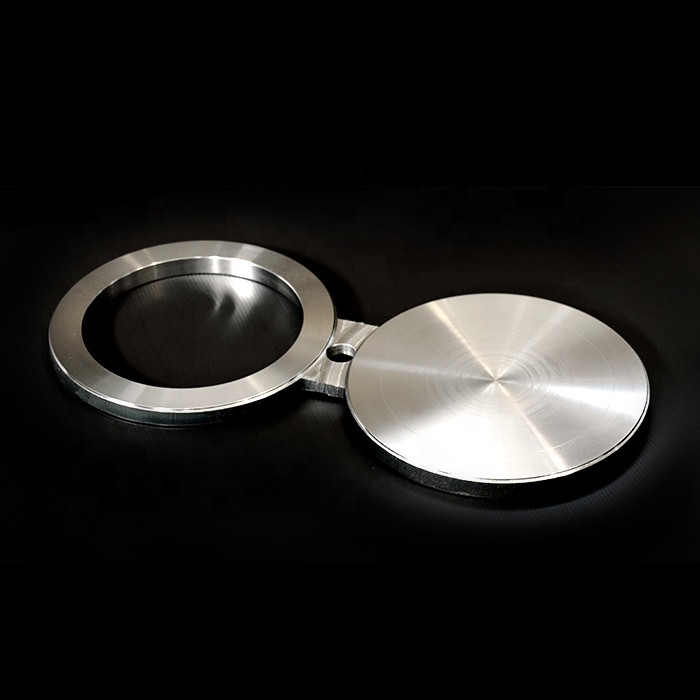

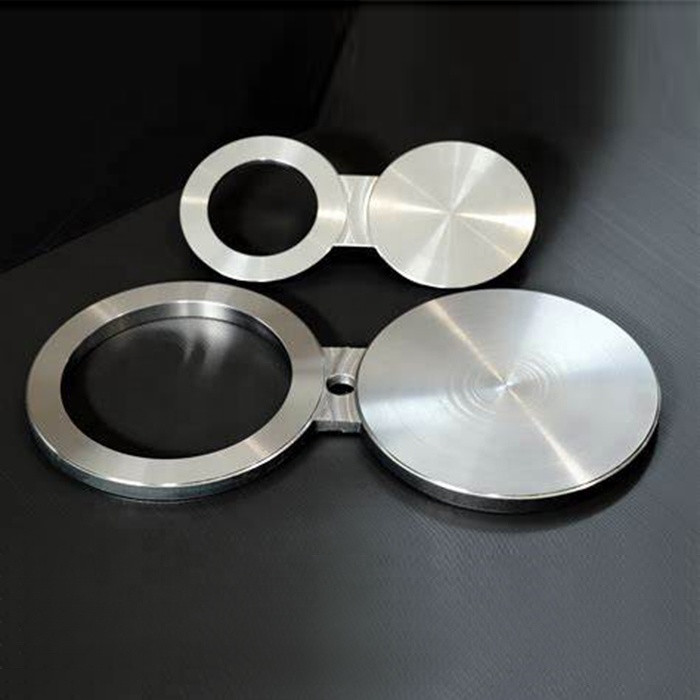

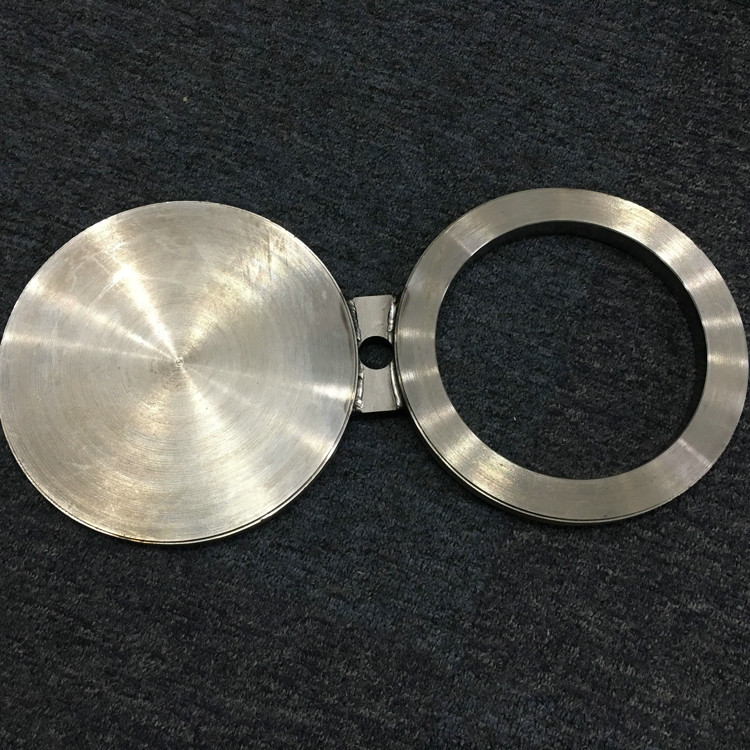

Forged stainless steel Spectacle Blind Flange Figure 8 Blind Flange



Figure 8 blind plate is a kind of pipe parts, mainly for convenient maintenance, you can paint the upper part of "8" black to know the specific shape. It's half blind and half ring. It is often used for pipeline flanges that need to be changed. The material mainly includes carbon steel, stainless steel and alloy. It can be selected according to the pressure level of the pipeline and the pipeline medium.



Detailed Images





Petroleum Figure 8 Spectacle Blind DIN2576 Figure 8 Blind Flange 0







Company Profile



DRACHMA (ZHANGJIAGANG) MATERIAL CO.LTD has two main production plants. Zhangjiagang plant is responsible for the rough forming of workpieces, mainly forging process; While Hangzhou plant is mainly responsible for precision machining, welding and inspection of products. We implement this layout mainly to use the industrial advantages of each region to achieve maximum economic benefits.



Traditional processing enterprises often do not have such ability, the lack of blank forming ability is unable to achieve the optimal use of materials, resulting in excessive processing allowance, long cycle, high cost. Zhangjiagang is located in the southern jiangsu province, which has the strongest forging capacity in China. It has a good supporting industry and can realize the diversified production of forging and pressing blanks. Thanks to this, the product cycle of our company is faster, the cost performance is higher, and the forging products have better mechanical properties than the products directly processed by rod or plate.



In addition, our company has strong welding ability, which can weld and assemble parts to achieve system delivery. We adopt the mode of automatic robot welding and manual precision welding to achieve flexibility and high quality.




Total Production (Tons) 2018 2019 2020
SS Flange 300 350 400
Duplex Flange 100 120 180
Alloy Steel Flange 90 110 140
Non-Standard parts 150 180 230





No. of employee: Production administration 15 person; Workshop 120 person; Quality and Technical 15 person.



Main Market: Europe, America, East south Asia, Korea, Japan



Management System: IS09001,TUV, PED



Sawing Machining: 6 sets



Forging Workshop: 2 tons Hammer: 3 sets,1 tons Hammer: 2 sets, Ring Rolling Machine: 2 sets

Machining Workshop: CNC Machine 10 sets, CNC drilling 1 set. Common Machining 20 sets, drilling: 7 sets.



Ultra High Flexible Vacuum Stainless Steel Welded Bellows Pipe Fitting 5





Equipment List





Name Type Quantity Processing range Precision(um)
CNC MAZAK(QTN350L) 1 φ720*1250 3
CNC MAZAK(QTN250L) 1 φ580*1500 3
Turn milling center MAZAK(QTN250M) 2 φ580*600 3
CNC Newway(NL-634SC) 1 φ630*1000 5
CNC FUJI(TN-36) 2 φ350*290 3
CNC HAAS SL30 1 φ620*750 3
CNC MAZAK FJV200 1 560X*410Y*560Z 3
CNC LGMAZAK NEXUS160AN-2PC 1 560X*410Y*660Z 10
CNC WHEELEL 2 560X*410Y*660Z 5
Welding Miller 1



Ultra High Flexible Vacuum Stainless Steel Welded Bellows Pipe Fitting 6





Material List we can deal





Stainless steel :304/1.4307 316/1.4404 321/1.4541 316Ti/1.4571 317L 904L F44 NO6625 UNS718

440A/B/C 431 446 F6a F11 F22 F91



Duplex steel : F51 F60 F53 F55



Aluminum Alloy: 6061 6063 7075 5052
