F304L 316L PVD Cavity Welding UHV Vacuum Chamber Custom

Brand Name DM
Minimum Order Quantity 1 set

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material F304L316L Process Welding And Machining
Standard Custom Surface Polished
Application PVD Vacuum Coating
High Light

316L PVD Cavity Welding

,

F304L Cavity Welding

,

F304L UHV Vacuum Chamber

Leave a Message
Product Description

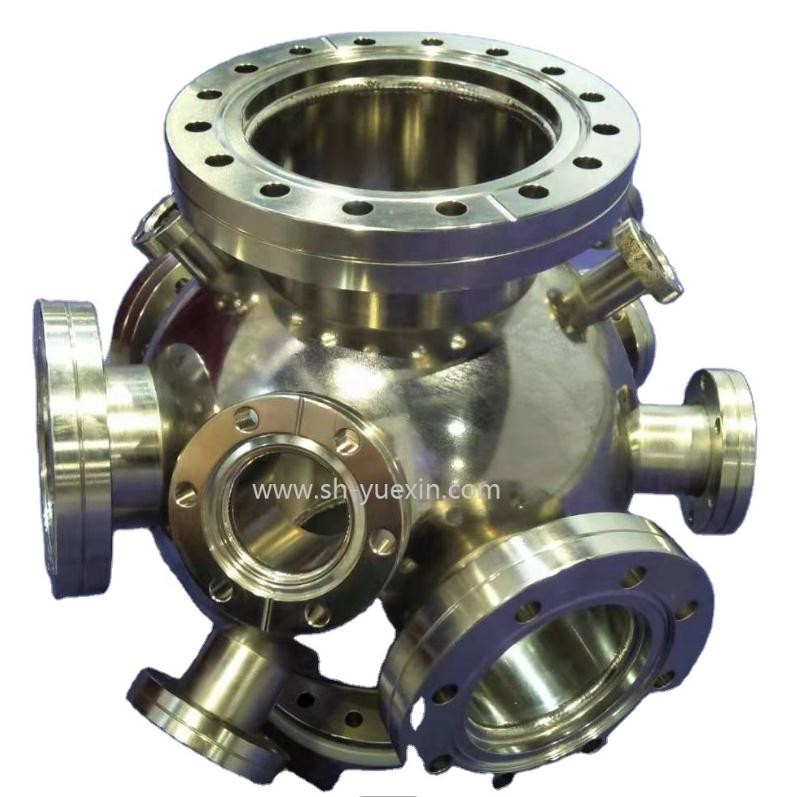

Stainless steel Ultra-high vacuum chamber for film growth



The utility model belongs to the mechanical technical field of vacuum cavity, in particular to an ultra-high vacuum cavity used for film growth. Its main body is formed by cutting eight vertex angles from a cube, and its internal cavity is hollowed out spherically to form the inner wall of the cavity used for film growth.





Company Profile



Our company has two main production plants. Zhangjiagang factory is responsible for the rough forming of workpiece, mainly forging process; Hangzhou plant is mainly responsible for precision machining, welding and inspection of products. We implement this layout mainly to use the industrial advantages of each region to achieve maximum economic benefits.



Traditional processing enterprises often do not have such ability, the lack of blank forming ability is unable to achieve the optimal use of materials, resulting in excessive processing allowance, long cycle, high cost. Zhangjiagang is located in the southern jiangsu province, which has the strongest forging capacity in China. It has a good supporting industry and can realize the diversified production of forging and pressing blanks. Thanks to this, the product cycle of our company is faster, the cost performance is higher, and the forging products have better mechanical properties than the products directly processed by rod or plate.



In addition, our company has strong welding ability, which can weld and assemble parts to achieve system delivery. Our company adopts the mode of automatic robot welding and manual precision welding to achieve flexibility and high quality





Two advantages forging and welding





F304L 316L PVD Cavity Welding UHV Vacuum Chamber Custom 0

No. of employee: Production administration 15 person; Workshop 120 person; Quality and Technical 15 person.



Main Market: Europe, America, East south Asia, Korea, Japan



Management System: IS09001,TUV, PED







Total Production (Tons) 2018 2019 2020
SS Flange 300 350 400
Duplex Flange 100 120 180
Alloy Steel Flange 90 110 140
Non-Standard parts 150 180 230










Sawing Machining: 6 sets

Forging Workshop: 2 tons Hammer: 3 sets,1 tons Hammer: 2 sets, Ring Rolling Machine: 2 sets

Machining Workshop: CNC Machine 10 sets, CNC drilling 1 set. Common Machining 20 sets, drilling: 7 sets



F304L 316L PVD Cavity Welding UHV Vacuum Chamber Custom 1



F304L 316L PVD Cavity Welding UHV Vacuum Chamber Custom 2





Material List we can deal









Stainless steel :304/1.4307 316/1.4404 321/1.4541 316Ti/1.4571 317L 904L F44 NO6625 UNS718

440A/B/C 431 446 F6a F11 F22 F91



Duplex steel : F51 F60 F53 F55



Aluminum : 6061 6063 7075 5052
