CF16 CF35 CF63 CF100 Edge Welded Bellows Rotatable Forged

Brand Name DM
Certification ISO 9001/3.1 CERTIFICATE
Model Number DM-0022
Minimum Order Quantity 1 set
Price 3000USD-5000USD/SET
Packaging Details 1000 Sets per Month
Delivery Time 20-30DAYS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Place Of Origin Jiangsu,China Material SUS304, SUS304L, SUS316, SUS316L, 316LN-ESR
Dimension(L*W*H) Customized Surface Treatment Sandblast Polished, Electro Polished, Manual Polished
Technics Forged Application Medicine Processing, Chemicals Processing, Food Processing
Shape Cylindrical, Box, D-shape, Spherical, Polygon, Bell Jar, Customized Package Plywood Case
After-sales Service Online Support, Video Technical Support OEM Service Yes
High Light

CF100 edge welded bellows

,

CF63 edge welded bellows

,

CF16 flexible hose pipe

Leave a Message
Product Description

Product Description



Welding bellows is a new type of component emerging at home and abroad in recent years. It can be used as a sensitive component, sealing component, isolation medium, pipeline connection and temperature compensator. It in addition to pressure resistance, temperature resistance, corrosion resistance, good sealing and other advantages, compared with the traditional shape of bellows there are two outstanding advantages: large deformation, long life.





Schematic diagram



single crystal furnace welded bellow for accelerator and vacuum industry 0

Its composition is composed of two formed hollow diaphragm with concentric circle for inner edge welding to form a diaphragm pair, and then a plurality of diaphragm pairs stacked together for outer edge welding to form a corrugated section, and then at both ends and end plate metal welding combined into a bellows group, so that it can be reciprocated with other moving parts according to the external needs



Parameters





  • Temperature: -196-450℃
  • Medium: Vacuum/Gas
  • Pressure: -0.1Mpa
  • Size:From DN5-DN300

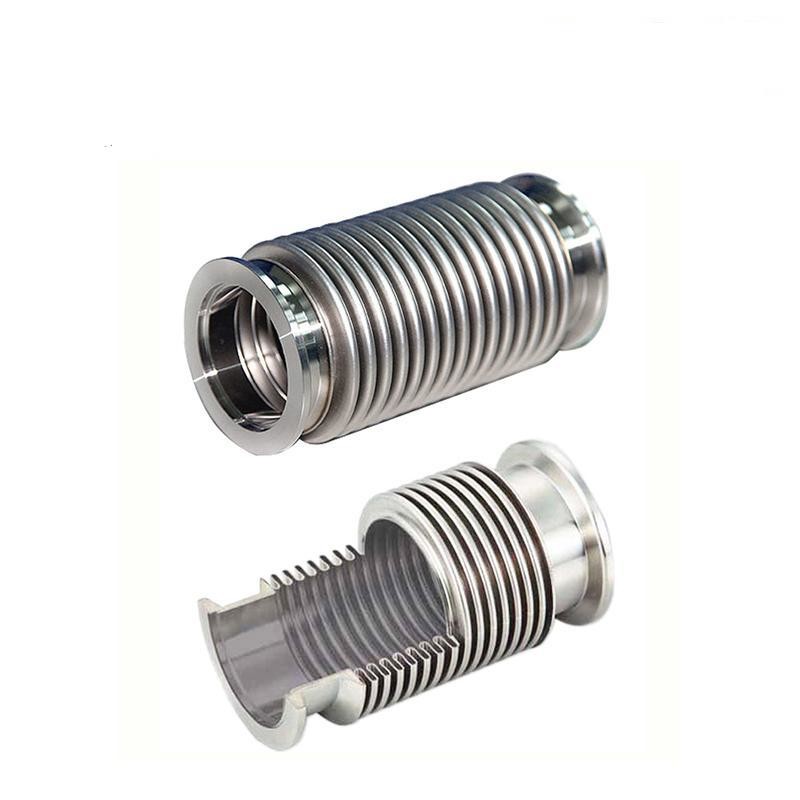

CF16 CF35 CF63 CF100 Edge Welded Bellows Rotatable Forged 1







Detailed Images

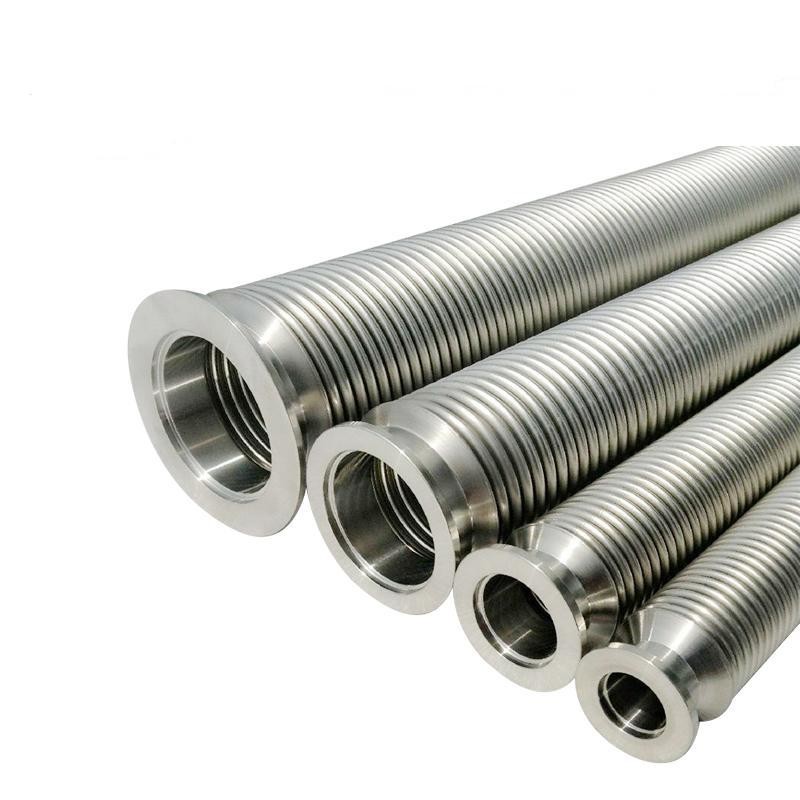

CF16 CF35 CF63 CF100 Edge Welded Bellows Rotatable Forged 2

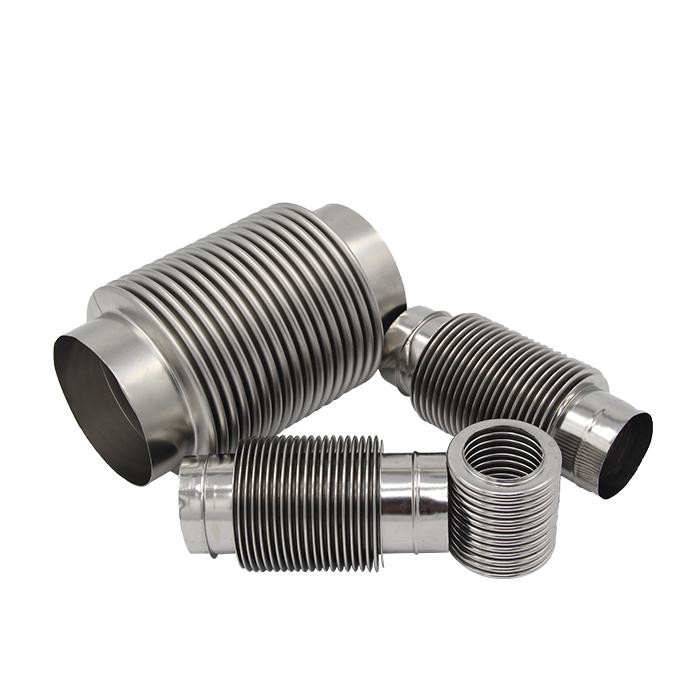

CF16 CF35 CF63 CF100 Edge Welded Bellows Rotatable Forged 3









Company Profile



DRACHMA (ZHANGJIAGANG) MATERIAL CO.LTD has two main production plants. Zhangjiagang plant is responsible for the rough forming of workpieces, mainly forging process; While Hangzhou plant is mainly responsible for precision machining, welding and inspection of products. We implement this layout mainly to use the industrial advantages of each region to achieve maximum economic benefits.



Traditional processing enterprises often do not have such ability, the lack of blank forming ability is unable to achieve the optimal use of materials, resulting in excessive processing allowance, long cycle, high cost. Zhangjiagang is located in the southern jiangsu province, which has the strongest forging capacity in China. It has a good supporting industry and can realize the diversified production of forging and pressing blanks. Thanks to this, the product cycle of our company is faster, the cost performance is higher, and the forging products have better mechanical properties than the products directly processed by rod or plate.



In addition, our company has strong welding ability, which can weld and assemble parts to achieve system delivery. We adopt the mode of automatic robot welding and manual precision welding to achieve flexibility and high quality.

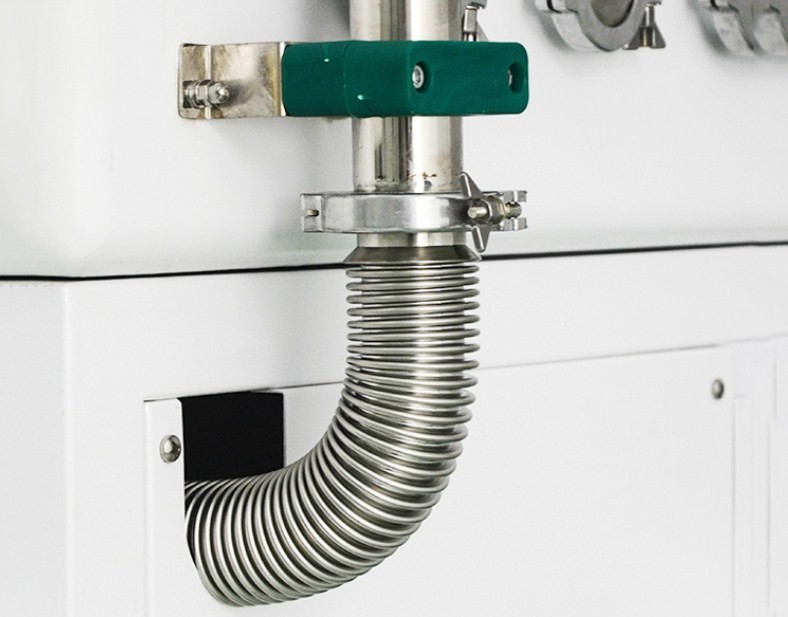

 CF16 CF35 CF63 CF100 Edge Welded Bellows Rotatable Forged 4



Equipment List





Name Type Quantity Processing range Precision(um)
CNC MAZAK(QTN350L) 1 φ720*1250 3
CNC MAZAK(QTN250L) 1 φ580*1500 3
Turn milling center MAZAK(QTN250M) 2 φ580*600 3
CNC Newway(NL-634SC) 1 φ630*1000 5
CNC FUJI(TN-36) 2 φ350*290 3
CNC HAAS SL30 1 φ620*750 3
CNC MAZAK FJV200 1 560X*410Y*560Z 3
CNC LGMAZAK NEXUS160AN-2PC 1 560X*410Y*660Z 10
CNC WHEELEL 2 560X*410Y*660Z 5
Welding Miller 1



Material List we can deal





Stainless steel :304/1.4307 316/1.4404 321/1.4541 316Ti/1.4571 317L 904L F44 NO6625 UNS718

440A/B/C 431 446 F6a F11 F22 F91



Duplex steel : F51 F60 F53 F55



Aluminum : 6061 6063 7075 5052
